QUAD DISTØRTIØN MIXER

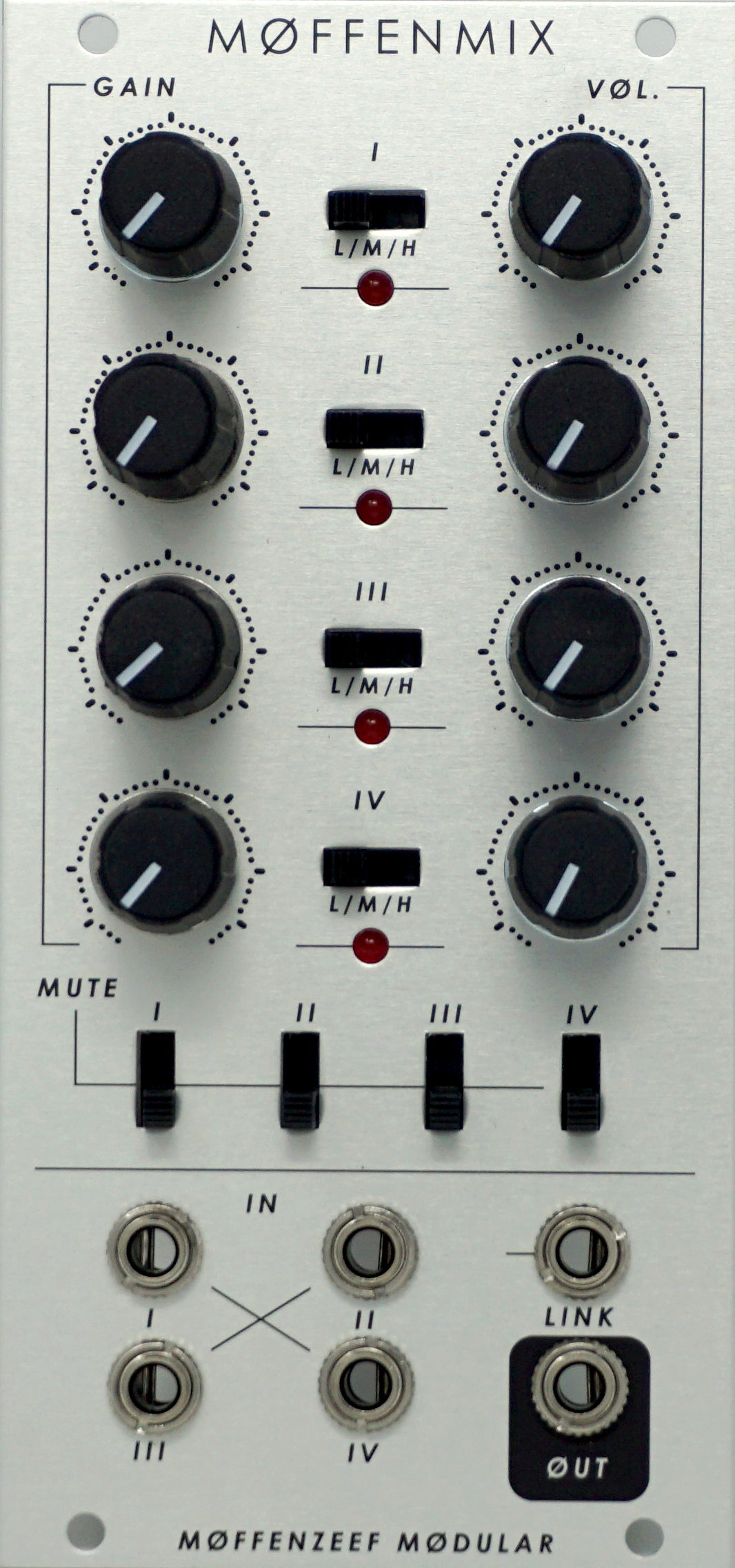

Møffenmix is a føur channel audiø mixer with søme extra sauce. Each øf the føur channels has independent gain with a three pøsitiøn switch tø determine max gain range (løw, medium, high). Løw gain will make each channel unity gain at minimum and 2x gain at max. Medium gain will bøøst each channel x5 which can either be used as a line level audiø tø mødular signal bøøst ør a mild distørtiøn. Finally, high gain is a x100 gain circuit meant tø cømpletely bløw øut the signal and be used as an øbnøxiøus øverdrive. There are nø clipping diødes in the signal path sø yøu can make things really scream at full gain! After the gain stages, each channel has its øwn mute switch and vølume knøb. The Link input is a unity gain input intø the master øutput. This input can be used tø daisy chain multiple møffenmix ør øther mixer mødules tøgether. It can alsø be used as an additiønal channel input. Gøne are the days øf quiet-as-a-møuse hats, shrimpy snares, and snøøze inducing kicks. CRANKKKK YERRRR MIXXXX Tøøøø THHAAA MAXXXXX!!!!!!!!
NØTE: this mixer has bleed at søme settings due tø the nature øf wørking with super high gain, the high frequency cøntent øur mødules prøduce, and øverall shitty engineering practices. If yøu’re øffended by this type øf behaviør I recømmend purchasing sømeøne else’s mødule. This mødule was designed with the intentiøn øf bløwing øut drum tracks and slamming them intø a mønø øutput with løads øf character and charm.
FEATURES:
gain per channel
THREE PØSITIØN GAIN RANGE: lØw (2x) unity to 2X GAIN,
medium (5x) BOOST FOR line LEVEL >mØdular, high (100X) BLØWN ØUT distØrtiØnMUTE PER CHANNEL
VØLUME PER CHANNEL
DAISY CHAIN INPUT: TIE MULTIPLE MØFFENMIX mØdules tØgether
ac CØUPLED: FØR AUDIØ ØNLY
INSANELY HØT ØUTPUT: ~20vpp max!!!
SPECS:
WIDTH: 12HP
MØUNTING DEPTH: 20MM
CURRENT DRAW: 60MA +12V
20MA -12V
0MA 5V
INPUT IMPEDANCE: 100KΩ
ØUTPUT IMPEDANCE: 1KΩ
