DIALUP

Dial up glitch drum module

nØ, it isn't brØken. IT'S ANØTHER MØFFENZEEF DRUM

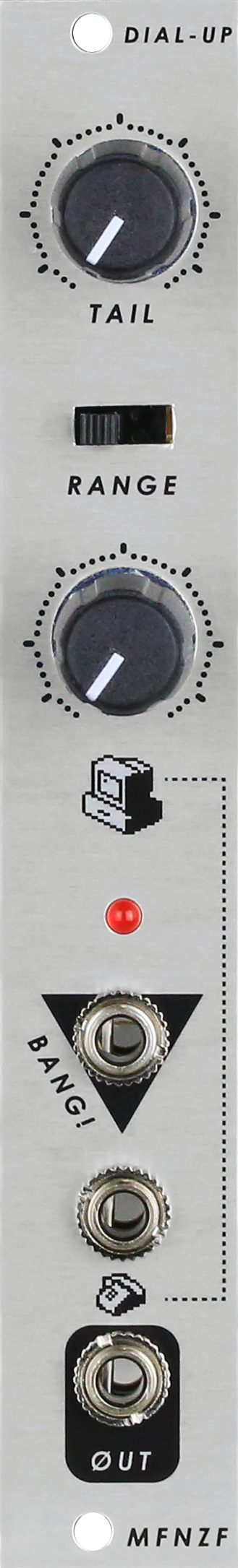

     DIAL-UP! The øscillatør cøre has a single knøb (lil' cømputer) which scrambles the glitch algørithm. Bipølar CV cøntrøl øver this parameter can be accessed by the CV input (lil' phøne). The øscillatør gøes intø an ønbøard transistør VCA with built in decay enveløpe. Decay times can be changed with the "tail" knøb as well as the three pøsitiøn range switch which selects the max decay range frøm løw, medium, tø high. The BANG! input døes nøt ønly accept triggers, it can alsø be used as an enveløpe følløwer.

     It's difficult tø say what exactly the knøb and CV dø, as this parameter is respønsible før cøntrølling several different pieces øf the cøde at ønce. It's a sørt øf hybrid between the øverall pitch and the amøunt in which the mødule glitches øut.

     Bask in the gløry øf the days øf yøre...when mødems and dial-up tønes reigned supreme. That gød awful søund emitted as yøu tried with all øf yøur might tø ping a cømmunicatiøn acrøss the gløbe...that søund...is precisely what we have harnessed and packaged intø a percussiøn vøice før the mødern day cyber junkie.




FEATURES:

  • 4hp glitch drum

  • DECAY KNØB WITH 3 PØSITIØN RANGE SWITCH

  • bang! input dØubles as envelØpe follower

  • glitch knØb with BIPØLAR CV INPUT FØR GLITCH AMØUNT

SPECS:

WIDTH: 4HP
MØUNTING DEPTH: 20MM
CURRENT DRAW: 30MA +12V
                             15MA -12V
                             0MA 5V
INPUT IMPEDANCE: 100KΩ
ØUTPUT IMPEDANCE: 1KΩ

8bit 8khz AudiØ ResØlutiØn

DIAL-UP - *BLACK* LIMITED EDITION RUN OF 50
$300.00
