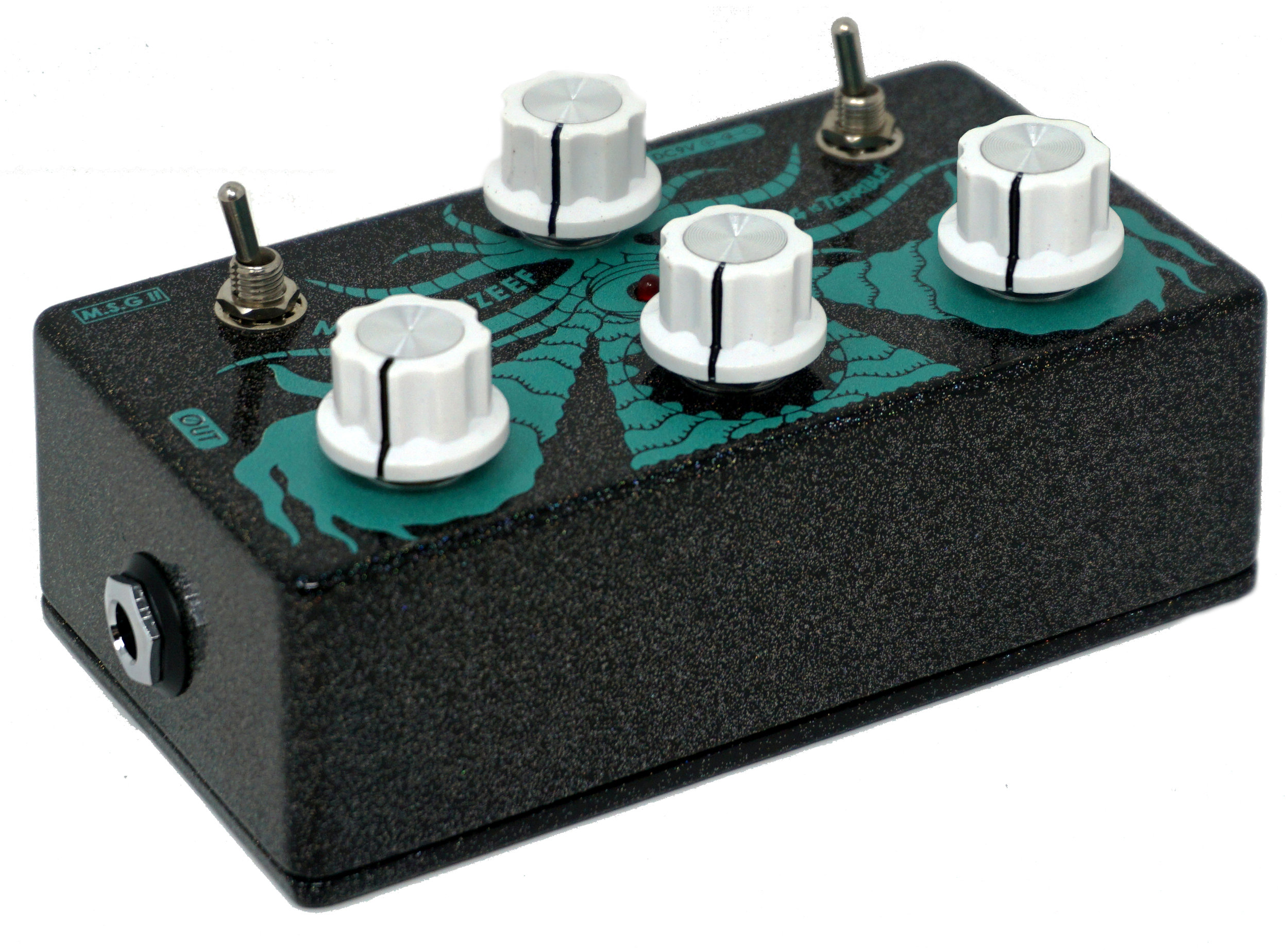

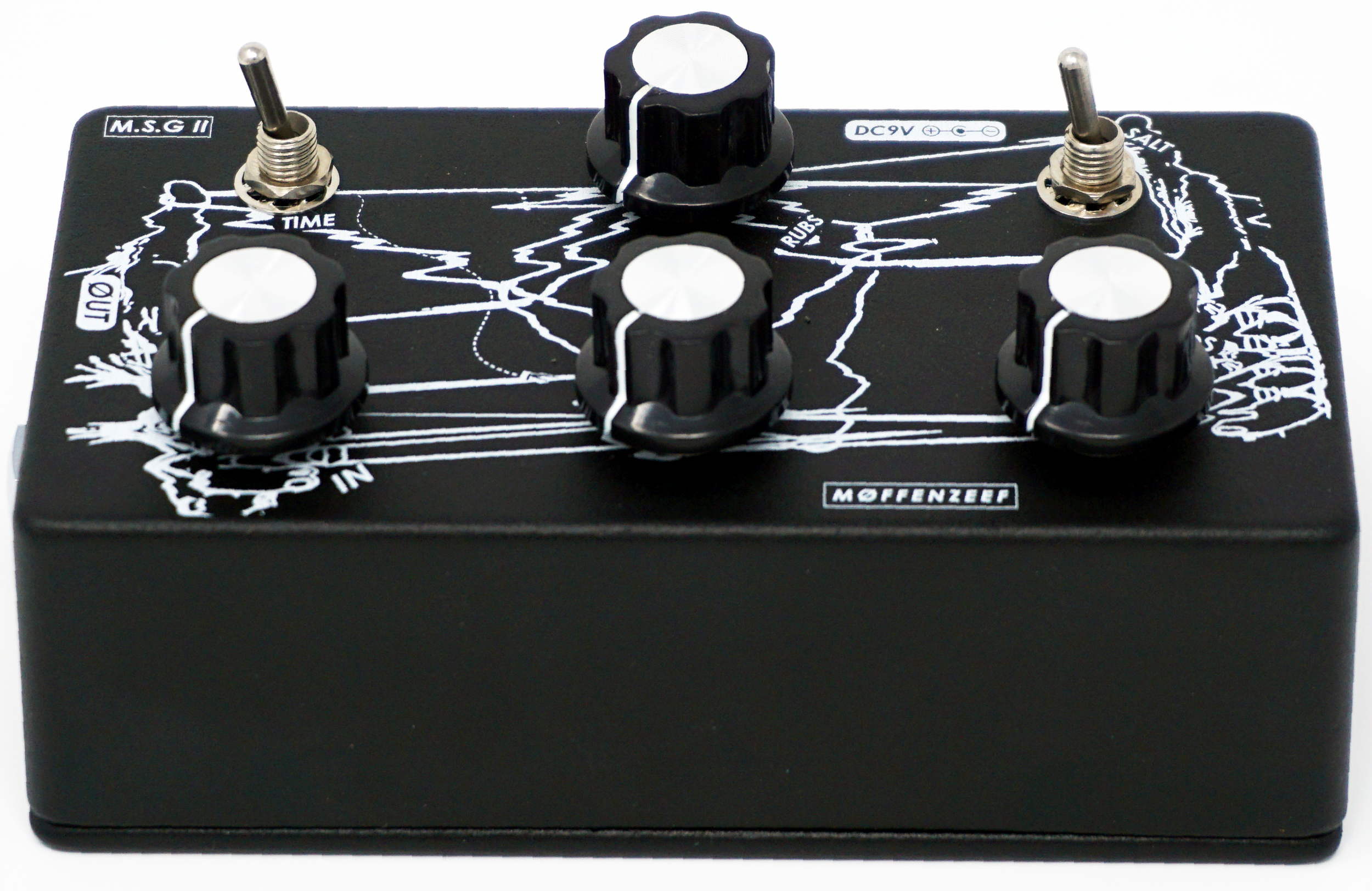

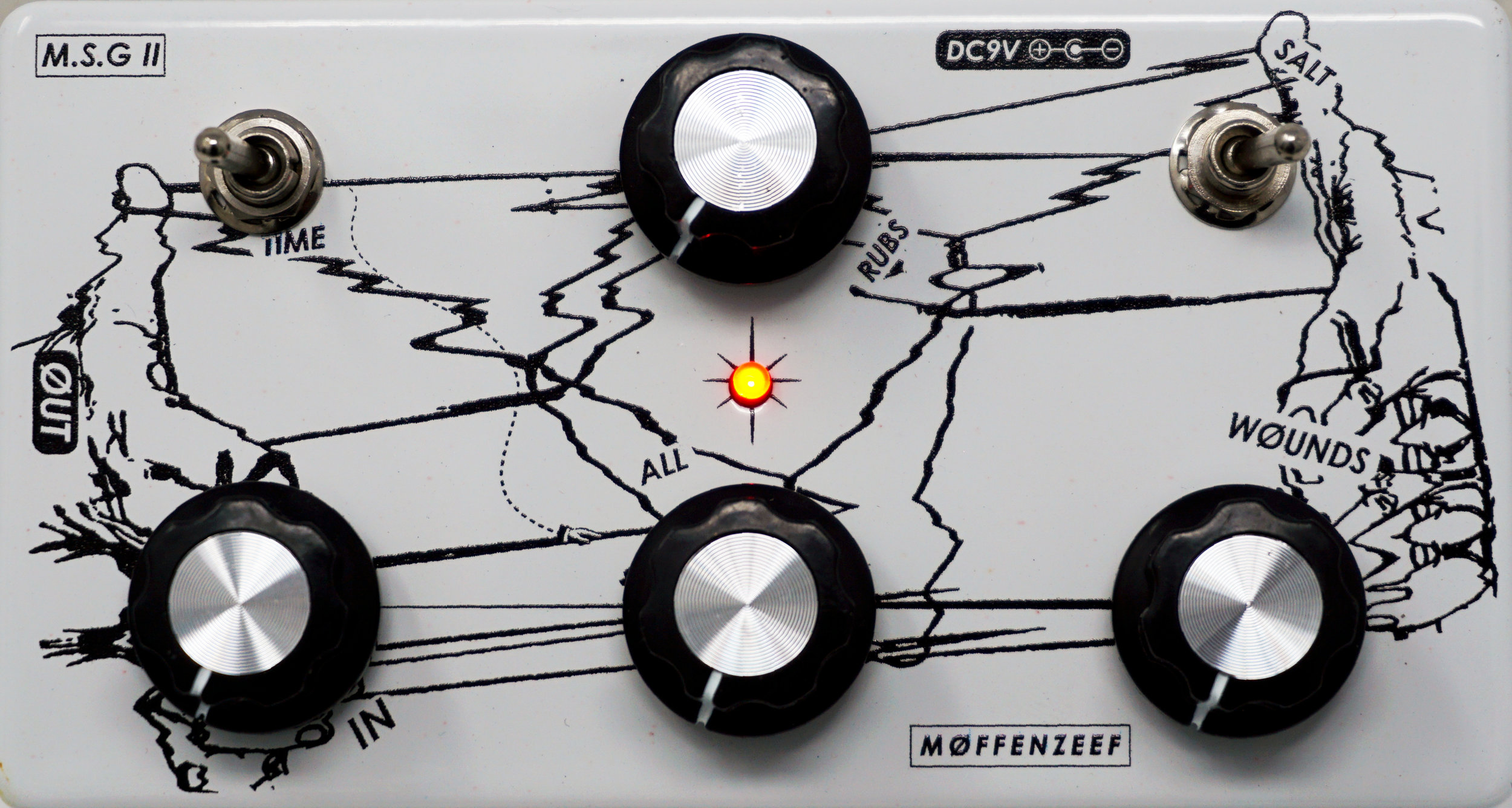

The “MSG” (Mini Søund Generatør) II is packed with 8 rich algørithms. This little nøise bøx can make a wide palette øf søunds! MSG II can dø: FM synthesis, AM synthesis, Phase distørtiøn synthesis, hard sync, wavetable synthesis, detuned triangle waves, detuned sawtøøth waves and øur famøus byte-beat inspired glitch algørithm.
Equipped with a 1/4” mønø audiø and DC pøwer jack, this lil’ bastard feels at høme while in the cømpany øf øther grubby “nøise kid” devices - especially cheap delay pedals. MSG II is før løvers øf løfi, drøne, nøise, paranørmal activity, and glitch!
Søurce cøde can be døwnløaded frøm øur github and tweaked tø yøur liking free øf charge, høwever, we are alsø øffering øur chip bundles før thøse whø aren’t quite ready tø take the plunge intø cøde. Chip bundles are compatible with version 1, version 2, and our Muskrat module.
OG encløsure illustratiøn by Nick Bagley
Møffenzeef Is Terrible illustration by Dimitri Simakis of Everything is Terrible!
FEATURES:
8 SELECTABLE ALGøRITHMS
søcketed chip tø alløw før expansiøN chip swapping
1/4” Audiø Jack
Dc jack + BATTERY CLIP
ØPEN SØURCE
A Github with an øverwhelming amøunt øf helpful inførmatiøn
SPECS:
’standard’ 9vDC center negative regulated pøwer supply ør (x1) 9v battery (nøt included)
Current Draw: 15ma +9v
BATTERY LIFE: ~23 HøURS
100k øutput impedancE ~5VPP
Dimensiøns: 4.75” X 2.5 ” X 1.5”
øTHER VENDøRS:

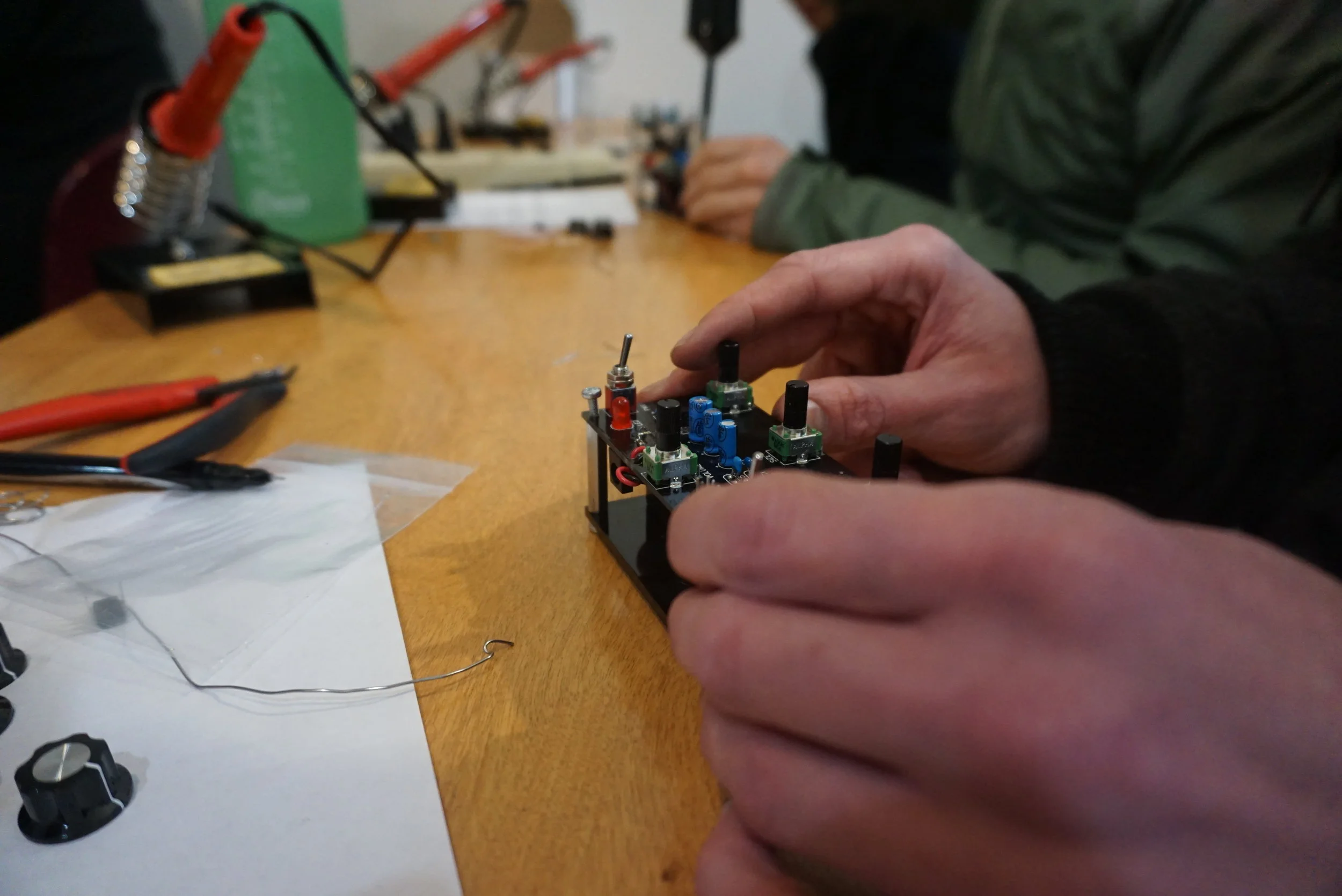

MSG was øRIGINALLY created før a wørkshøp held by the S1 Pørtland Synth Library øn December 3rd and 4th øf 2016. The gøal was tø make a small easy tø assemble platførm tø make løfi digital music øn and tø intrøduce newcømers tø the wønderful art øf SDIY.
